What Technology We Have About Tube Mill?

No.1 W Forming method



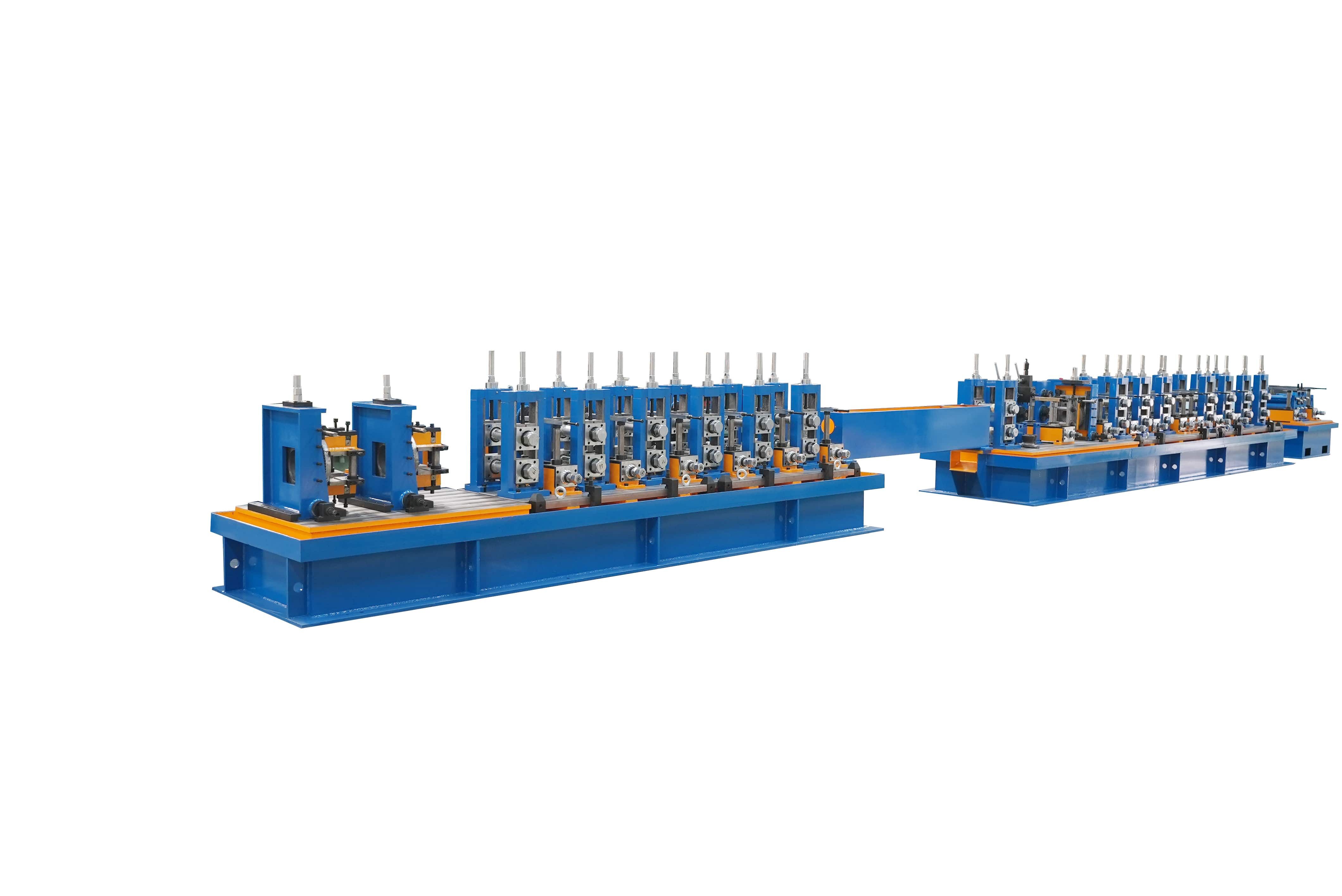

Introduction:This forming method is mainly suitable for customers who need to produce both round and square pipes. As shown in this picture, the unit model is HG60, which can produce round pipes 25-76mm with thickness of 0.8-3.5mm, as well as square pipes 20x20-60x60mm with thickness of 0.8-3.0mm. When producing different shapes and diameters, only the entire set of molds or half sets of molds need to be replaced.

For Example:

HG32

Round:10-32mm, Square:10x10-25x25

HG60

Round:20-63mm, Square:15x15-50x50

HG76

Round:25-76mm, Square:20x20-60x60

HG89

Round:32-89mm, Square:25x25-70x70

More: HG114 HG140 HG165 HG219 HG273.......

No.2 FF(DFT) Forming method



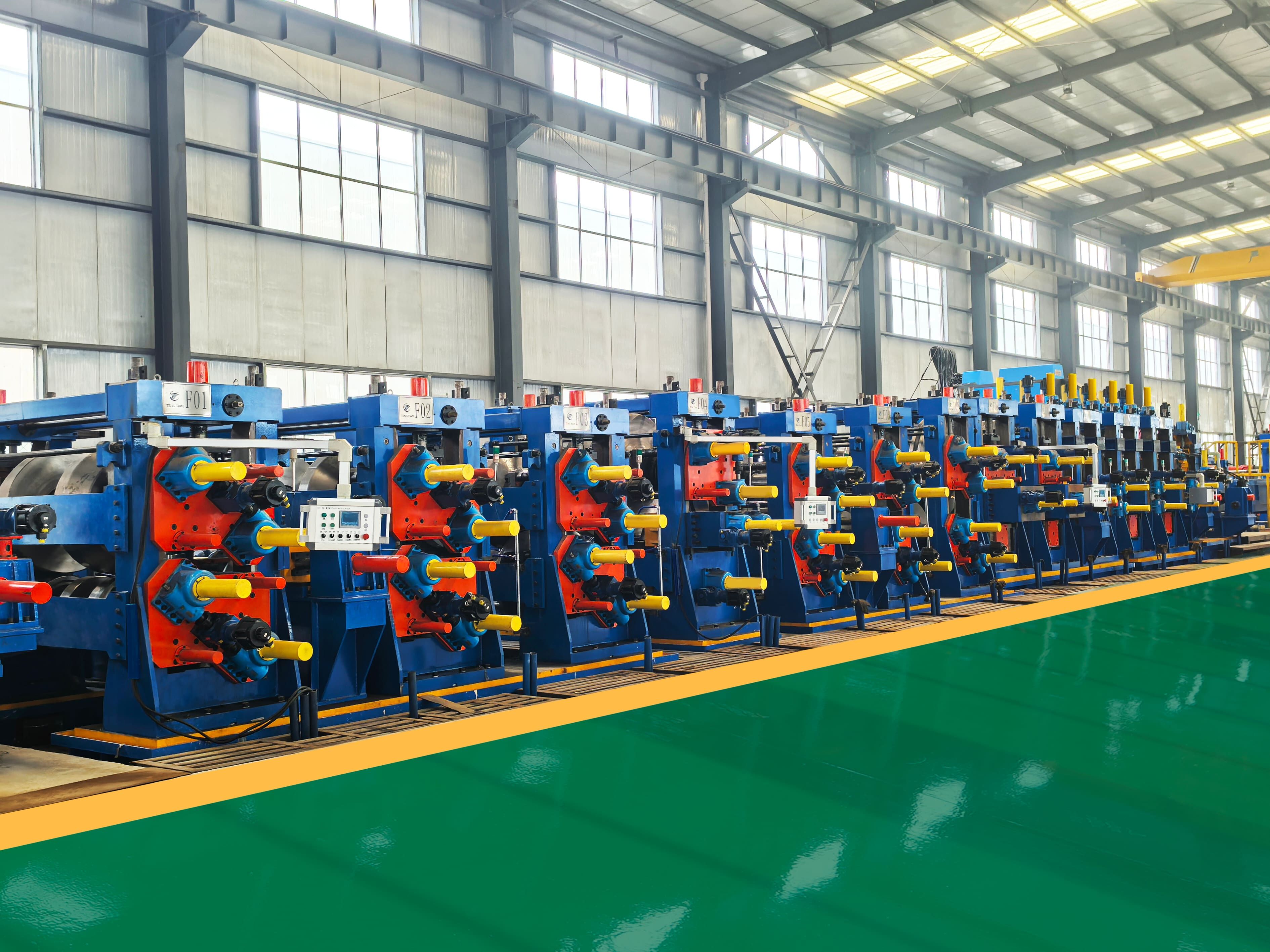

Introduction:This forming method is mainly suitable for customers who only need to produce square tubes and do not need to produce round tubes, such as 40x40-100x100, or 200x200-500x500, etc. The main advantage is that there is no need to replace the mold, and one set of molds can produce all sizes within the production capacity range. By adjusting the relative position of the mold, the effect of mold changeover can be achieved.

For Example:

LW400

Square:40x40-100x100

LW800

Square:80x80-200x200

LW1200

Square:150x150-300x300

More: LW1600 LW2000 LW2400

No.3 FFX Forming method

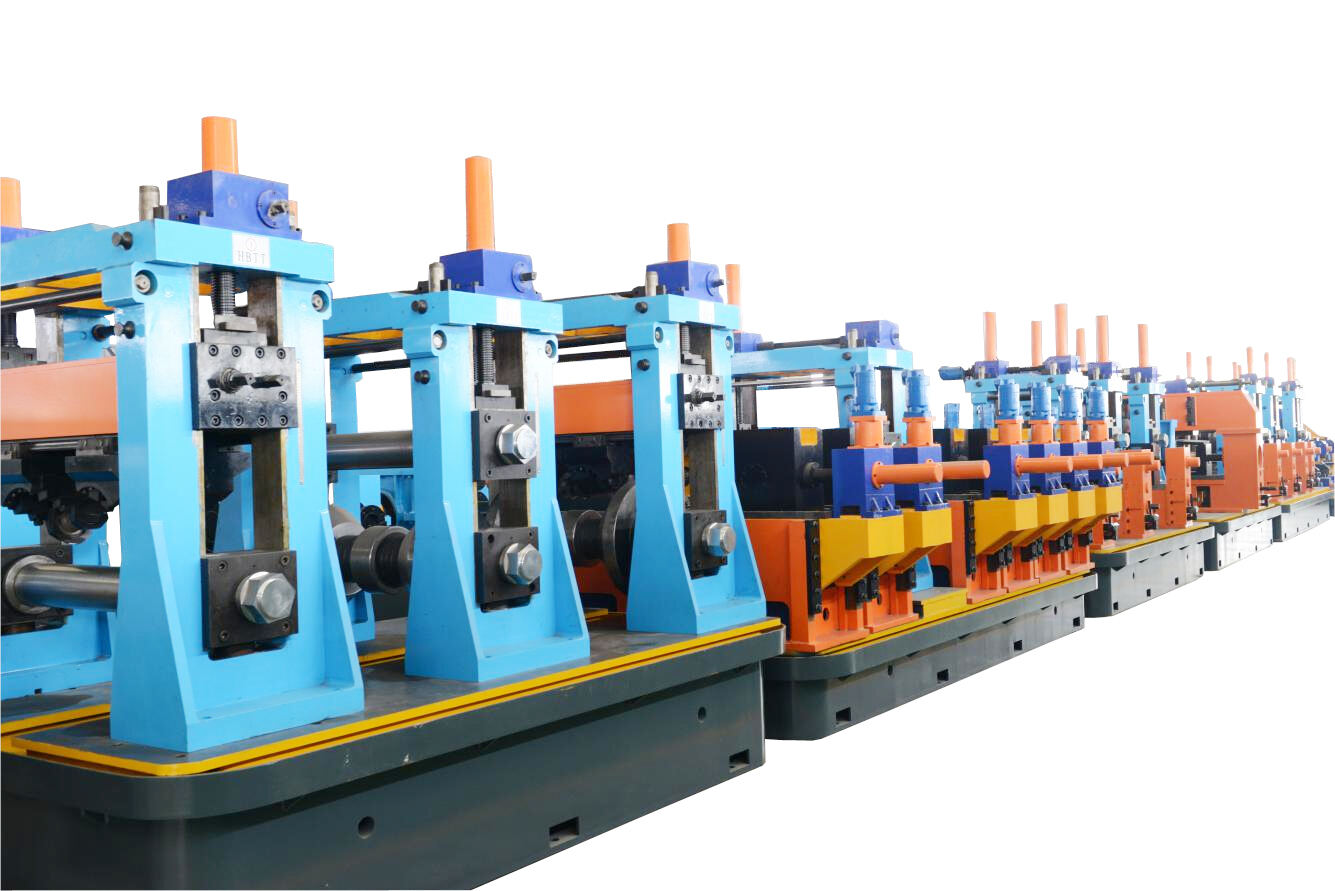

32 273.jpg

Introduction:This forming method belongs to a type of W-molding method, which can also produce round and square tubes. Mainly used for large units above 219mm, because the molds of large units are relatively heavy and expensive, this molding method can share some molds, and the forming opening area can share molds without replacement, so it can save mold costs.

For Example:

HG219

Round:114-219mm, Square:90x90-170x170

HG254

Round:114-254mm, Square:90x90-200x200

HG273

Round:114-273mm, Square:90x90-215x215

HG325

Round:165-325mm, Square:130x130-255x255

No.4 Full Automatic Square Pipe Production Line


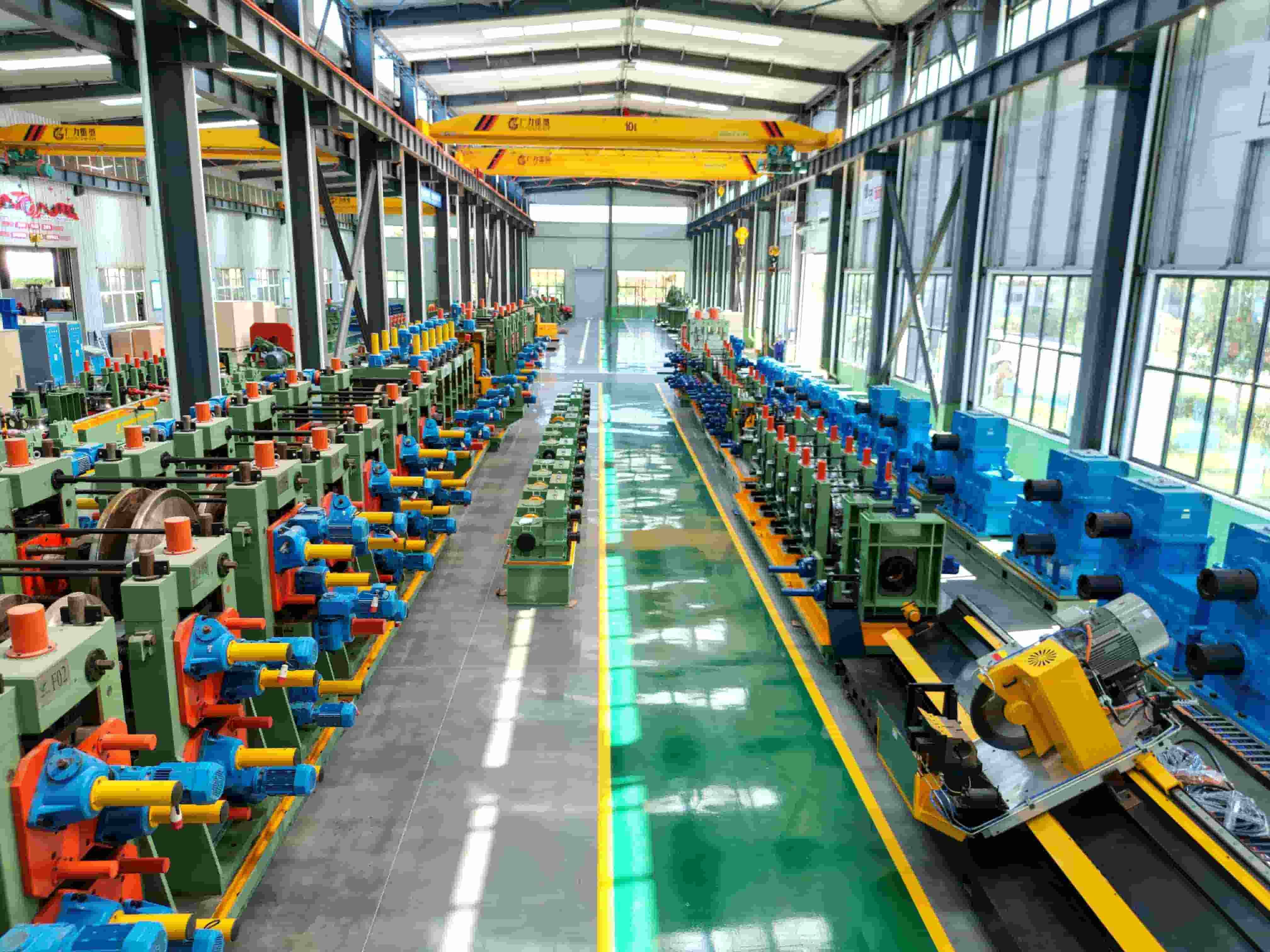

Introduction:This forming method belongs to a type of FF molding method, which can only produce square pipes and cannot produce round pipes. The mold is shared, and when producing pipes of different size, the mold does not need to be replaced, only the mold position needs to be adjusted. Its biggest feature is fully automatic specification replacement. Mold adjustment is driven by servo motors and automatically controlled by a PLC system to change specifications. When you need to change the specifications, you only need to enter the size and wall thickness you want on the IPad, and all molds will automatically start adjusting without the need for each mold to be manually adjusted separately. It also have memory function, and all plans can be saved. The next time the same specifications are produced, they only need to be retrieved and used. So it has the characteristics of saving roller costs, time, and labor.

For Example:

HGA400

Square:40x40-100x100

HGA800

Square:80x80-200x200

HGA1200

Square:150x150-300x300

More: HGA1600 HGA2000 HGA2400

No.5 Off-line Quickly change mold table

Introduction:The forming and sizing machine has two sets of workbenches, one for online production and the other for offline mold replacement. This way, there is no need to stop the machine when replacing the molds. After all the molds are replaced, production can be stopped and the replaced workbenches can be replaced as a whole. Greatly saves time on mold replacement, previously it took two days, now it only takes 2-4 hours.

Suitable For HG32 HG50 HG60 HG76 HG89 HG114 HG165

No.6 Quick- change shaft system

Introduction:The quick-change shaft system is used for off-line change rollers. Input new rollers on the shaft, take of the former shaft with roller from the machine, put on the ready off-line shaft on the machine. So it can save 60% of the time of change new rollers.

Suitable For: HG219 HG254 HG273 HG325 HG426 HG508 HG610 HG760

No.7 Side out roller changing hydraulic device

Introduction:This hydraulic device is mainly used to quickly move the frame out through the hydraulic device when replacing molds, achieving the effect of saving time, effort, and speed

Suitable For: HG32 HG50 HG60 HG76 HG89 HG114 HG165

No.8 H Beam(I beam) Production Line

Introduction:This production line is used for making welded H beam/ I beam.

It can do these sizes:

147х149х6х10

204х201х10х14

250х125х6х10

330х230х8х14

350х250х6х8

340х250х10х14

150х150х8х10

250х200х4х4

300х150х6х8

330х230х10х16

350х250х8х10

400х300х8х10

155х151х8х14

190х149х6х8

255х126х8х12

350х200х5х5

300х201х10х16

400х300х10х12

160х152х10х16

250х200х4х5

300х150х6х10

298х149х6х8

350х250х10х12

400х300х12х15

200х100х4х4

194х150х6х10

260х127х10х14

350х200х5х6

350х250х10х16

400х350х14х16

200х100х4х5

199х151х8х12

246х249х8х12

350х200х6х8

400х210х6х6

396х199х8х12

220х100х4х6

250х200х5х8

250х250х10х14

305х151х8х12

346х174х6х10

400х200х8х14

240х120х5х5

204х152х10х14

253х251х10х16

350х200х6х10

400х210х6х8

406х201х10х16

200х100х6х8

250х200х6х8

240х174х6х10

310х152х10х14

350х175х8х12

383х299х10х14

240х120х6х6

250х200х8х12

300х220х4х6

298х299х10х14

400х250х8х8

400х350х6х12

203х101х8х10

270х200х8х14

300х220х5х8

300х300х10х16

355х176х10х14

390х300х10х16

240х130х6х8

270х200х10х16

244х175х8х12

300х305х14х16

400х250х8х10

400х350х8х14

208х102х8х12

300х150х5х5

300х220х6х10

290х199х8х10

342х348х10х16

446х199х8х12

196х199х8х10

248х124х6х8

249х176х10х14

350х250х5х7

334х249х8х12

450х200х10х14

200х200х8х12

300х150х5х6

300х220х8х12

294х200х8х12

400х300х6х8

434х299х10х16

No.9 Special Tube Shape

Introduction:This tube production line is used for making all types of special shape.

Application: Doors and Windows, Decoration etc
